Understanding MCP servers

MCP servers are programs that expose specific capabilities to AI applications through standardised protocol interfaces.

Common examples: filesystem servers, database servers, GitHub, Slack, and calendar servers.

Adapted from Understanding MCP servers.

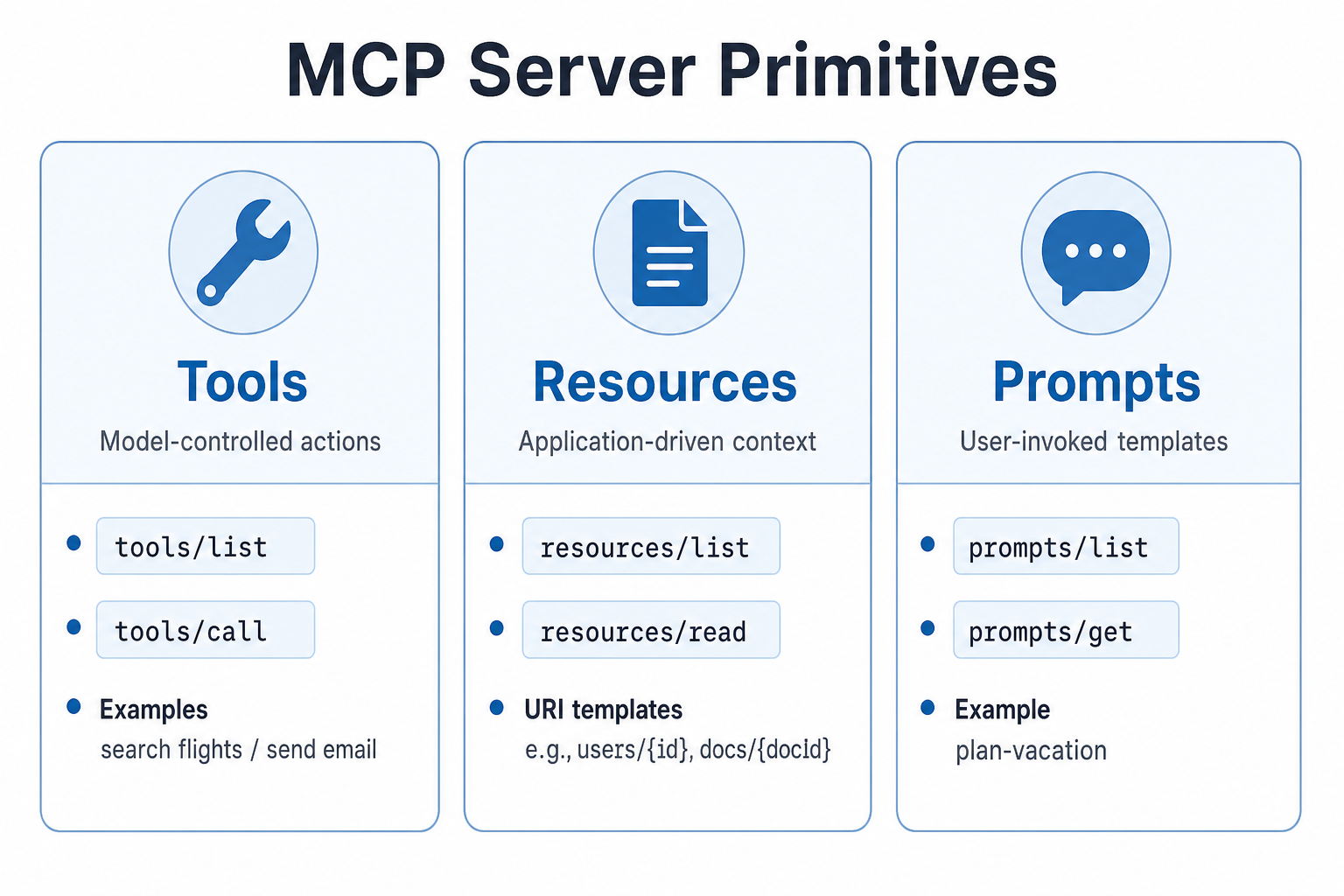

Three server building blocks and who typically controls them. Playbook diagram.

Example of a host surfacing server-backed weather context. Source: modelcontextprotocol/docs (current-weather.png).

Executive summary

Servers expose tools (model-controlled actions), resources (application-driven context) and prompts (user-invoked templates). Combining multiple specialised servers is where MCP compounds value.

Core server features

Feature	Explanation	Examples	Who controls it
Tools	Functions the LLM can call when useful	Search flights, send messages, create events	Model
Resources	Passive read-only data for context	Documents, schemas, calendars	Application
Prompts	Pre-built instruction templates	Plan a vacation, summarise meetings	User

Tools

Tools are schema-defined operations validated with JSON Schema. They may require user consent before execution.

Method	Purpose
tools/list	Discover tool definitions and schemas
tools/call	Execute a tool

{
  name: "searchFlights",
  description: "Search for available flights",
  inputSchema: {
    type: "object",
    properties: {
      origin: { type: "string", description: "Departure city" },
      destination: { type: "string", description: "Arrival city" },
      date: { type: "string", format: "date", description: "Travel date" }
    },
    required: ["origin", "destination", "date"]
  }
}

Travel booking example: searchFlights, createCalendarEvent, sendEmail — each a single clear action.

User interaction model: hosts should show available tools, approval dialogs, permission presets and activity logs so humans stay in control.

Resources

Resources expose data via unique URIs and MIME types.

Pattern	Example
Direct resource	calendar://events/2024
Resource template	travel://activities/{city}/{category}

Method	Purpose
resources/list	List direct resources
resources/templates/list	Discover templates
resources/read	Read contents
subscriptions/listen	Watch for updates

{
  "uriTemplate": "weather://forecast/{city}/{date}",
  "name": "weather-forecast",
  "title": "Weather Forecast",
  "description": "Get weather forecast for any city and date",
  "mimeType": "application/json"
}

Parameter completion helps users discover valid values (for example typing Par suggests Paris).

Resources are application-driven: the host decides what to fetch, filter with embeddings, or pass to the model.

Prompts

Prompts are reusable, parameterised templates. They are user-controlled — invoked explicitly (slash commands, command palette), not auto-fired by the model.

Method	Purpose
prompts/list	Discover prompts
prompts/get	Retrieve full definition and arguments

{
  "name": "plan-vacation",
  "title": "Plan a vacation",
  "description": "Guide through vacation planning process",
  "arguments": [
    { "name": "destination", "type": "string", "required": true },
    { "name": "duration", "type": "number", "description": "days" },
    { "name": "budget", "type": "number", "required": false }
  ]
}

Bringing servers together

The power of MCP shows when multiple servers collaborate:

1. User invokes plan-vacation with destination and dates.
2. User (or host) selects resources: calendar, travel preferences, past trips.
3. Model uses tools across Travel, Weather and Calendar/Email servers — with approval for booking side effects.

Result: a task that could take hours completes in minutes with structured context and controlled actions.

Negative cases

• Tool schemas that are too vague → models call tools incorrectly; keep one responsibility per tool.
• Resources without MIME types → hosts mishandle content; always declare MIME.
• Prompts that auto-trigger → violates user control; require explicit invocation.
• Granting filesystem tools to broad home directories → over-privilege; scope paths tightly.

Hosts often surface a tools affordance so users can see what servers expose. Source: modelcontextprotocol/docs.

Key takeaways

• Tools = actions (model); resources = context (app); prompts = templates (user).
• Design tools as small, typed operations with consent UX.
• Multi-server compositions beat monolith servers for reuse and blast-radius control.

What to do next

Continue with Understanding MCP clients, then Build an MCP server.
